PRODUCTS
Hybrid Wood and Metal Locker
The Prestige of Fine Wood - The Affordable Price of KD
- Lockers can be ordered fully-assembled or knock-down for assembly at destination.
- Order 3-wide units for best value. Order 1-wide units to complete quantity needed for each continuous row.
- Aluminum number plates (#1-up) with mounting hardware are included. Number plate face is black with silver etched numerals. If a special numbering sequence is required, please specify when ordering. Number sequence must be consecutive numbers equal to the number of openings (doors) ordered.
- Built-in key locks are included.
Hybrid Locker Features
- BODY CONSTRUCTION: Knock-down, 24 gauge sheet steel
- BODY STYLES: Single, double and triple tier
- DOOR: Furniture grade red oak plywood, finished with three coats formaldehyde free conversion varnish or equal
- HINGES: Continuous piano type
- HOOKS: Two single hooks per single and double tier opening. One double prong ceiling hook for triple tier.
- COAT RODS: Standard for single and double tier
- SHELVES: Hat shelf in single tier lockers only
- LEGS: 6" high legs are standard. Lockers without legs are available at a nominal charge
- APPEARANCE: Color: black frame with red oak doors
- NOTE: Other optional locking methods also available
We can work from your designs, or choose from ours.
Custom designs, sizes and wood types are available upon request.
Hybrid Lockers
Stock Sizes:
Width | Depth | Opening Height |
Frame Height |
Group | KD Catalog # | Assembled Catalog # |
Color |
Single Tier | |||||||
12 | 18 | 72 | 78 | 1-Wide | UW1288-1MEW | UW1288-1A-MEW | ME/Wood |
12 | 18 | 72 | 78 | 3-Wide | UW3288-1MEW | UW3288-1A-MEW | ME/Wood |
15 | 18 | 72 | 78 | 1-Wide | UW1588-1MEW | UW1588-1A-MEW | ME/Wood |
15 | 18 | 72 | 78 | 3-Wide | UW3588-1MEW | UW3588-1A-MEW | ME/Wood |
Double Tier | |||||||
12 | 18 | 36 | 78 | 1-Wide | UW1288-2MEW | UW1288-2A-MEW | ME/Wood |
12 | 18 | 36 | 78 | 3-Wide | UW3288-2MEW | UW3288-2A-MEW | ME/Wood |
15 | 18 | 36 | 78 | 1-Wide | UW1588-2MEW | UW1588-2A-MEW | ME/Wood |
15 | 18 | 36 | 78 | 3-Wide | UW3588-2MEW | UW3588-2A-MEW | ME/Wood |
Triple Tier | |||||||
12 | 18 | 24 | 78 | 1-Wide | UW1288-3MEW | UW1288-3A-MEW | ME/Wood |
12 | 18 | 24 | 78 | 3-Wide | UW3288-3MEW | UW3288-3A-MEW | ME/Wood |
Accessories
Width | Depth | Height | KD Catalog # | Color | ||||
Closed Front Base | ||||||||
12 | 6 | KCFB12ME | ME | |||||
15 | 6 | KCFB15ME | ME | |||||
Closed Side Base | ||||||||
18 | 6 | KCSB18ME | ME |

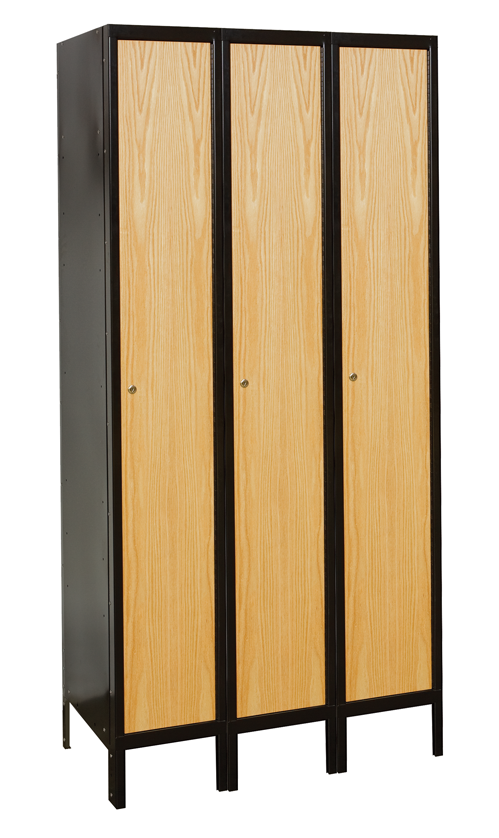

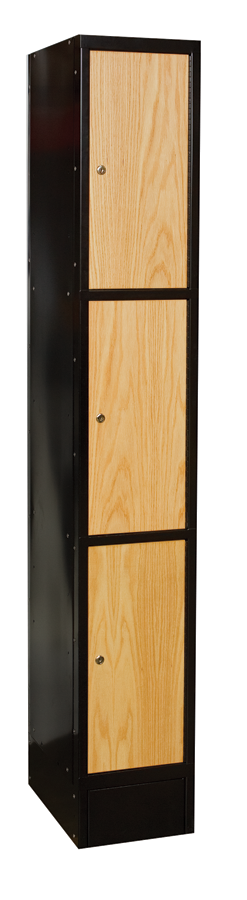

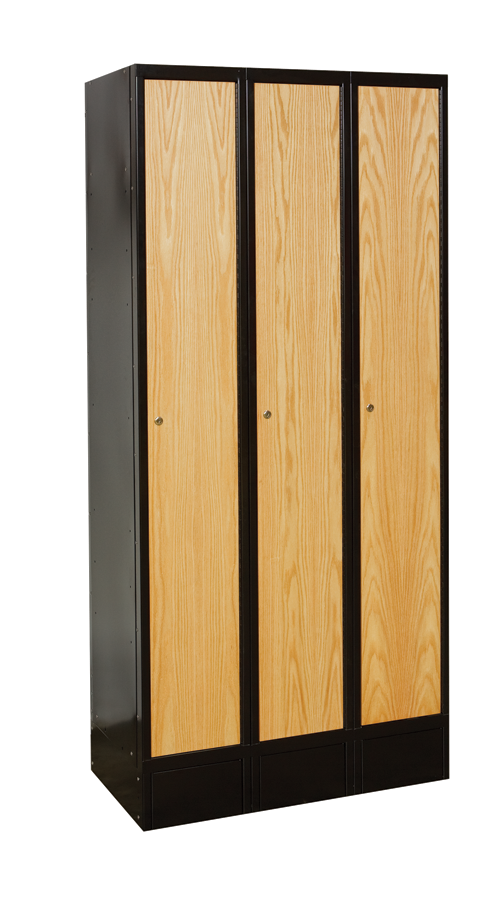

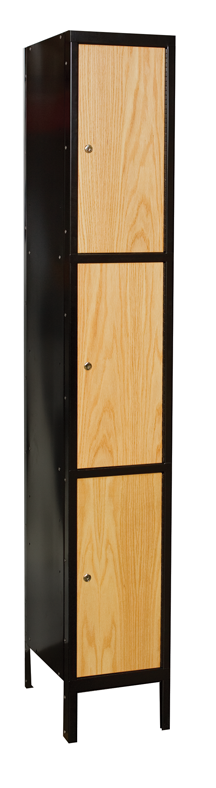

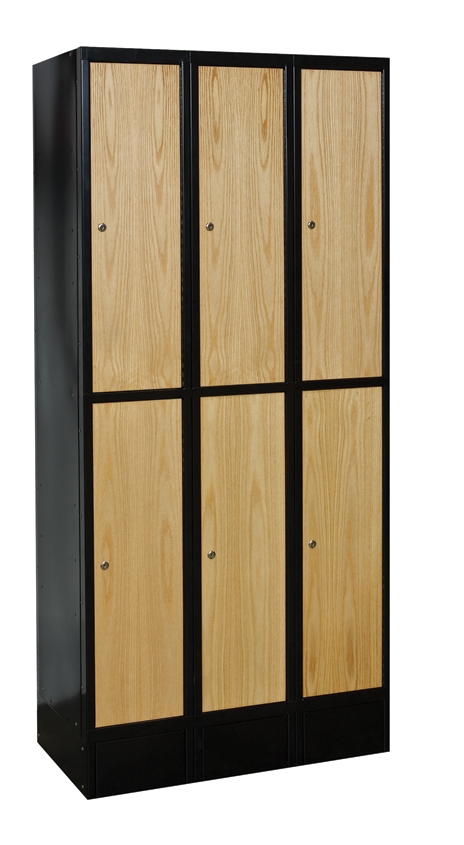

Photos
Click on the photos to enlarge.
